Pi-Vate Cloud
Duration: Aug 2025 – Dec 2025
Technologies: Raspberry Pi 4, OpenMediaVault, Docker, Plex Media Server, Twingate ZTNA
Category: Cloud Infrastructure, Self-Hosting, Cybersecurity
Description
Pi-Vate Cloud is a comprehensive self-hosted personal cloud ecosystem built on Raspberry Pi 4, designed as a cost-effective and privacy-focused alternative to commercial cloud services like Google One, Dropbox, and iCloud. The project demonstrates advanced skills in network architecture, containerization, and zero-trust security principles while achieving significant cost savings and complete data sovereignty.
Key Features & Achievements
- 54% Cost Savings: Comprehensive 5-year TCO analysis showed massive savings compared to Google One (100GB plan)
- Zero-Trust Security: Implemented Twingate ZTNA for secure remote access without port forwarding, eliminating public attack surface
- Network Address Translation: All services accessible remotely without exposing local network to internet threats
- Docker Containerization: Modular architecture with isolated containers for Plex, backup services, and management tools
- NAS Management: OpenMediaVault provides enterprise-grade storage management with RAID support and automated snapshots
- Media Streaming: Plex Media Server enables Netflix-like streaming of personal media library to any device
- Complete Data Control: Full ownership and privacy of personal data with no third-party access
- Published Research: Accepted at ICIDA 2025 conference (Springer) - 15.8% acceptance rate
Technical Architecture

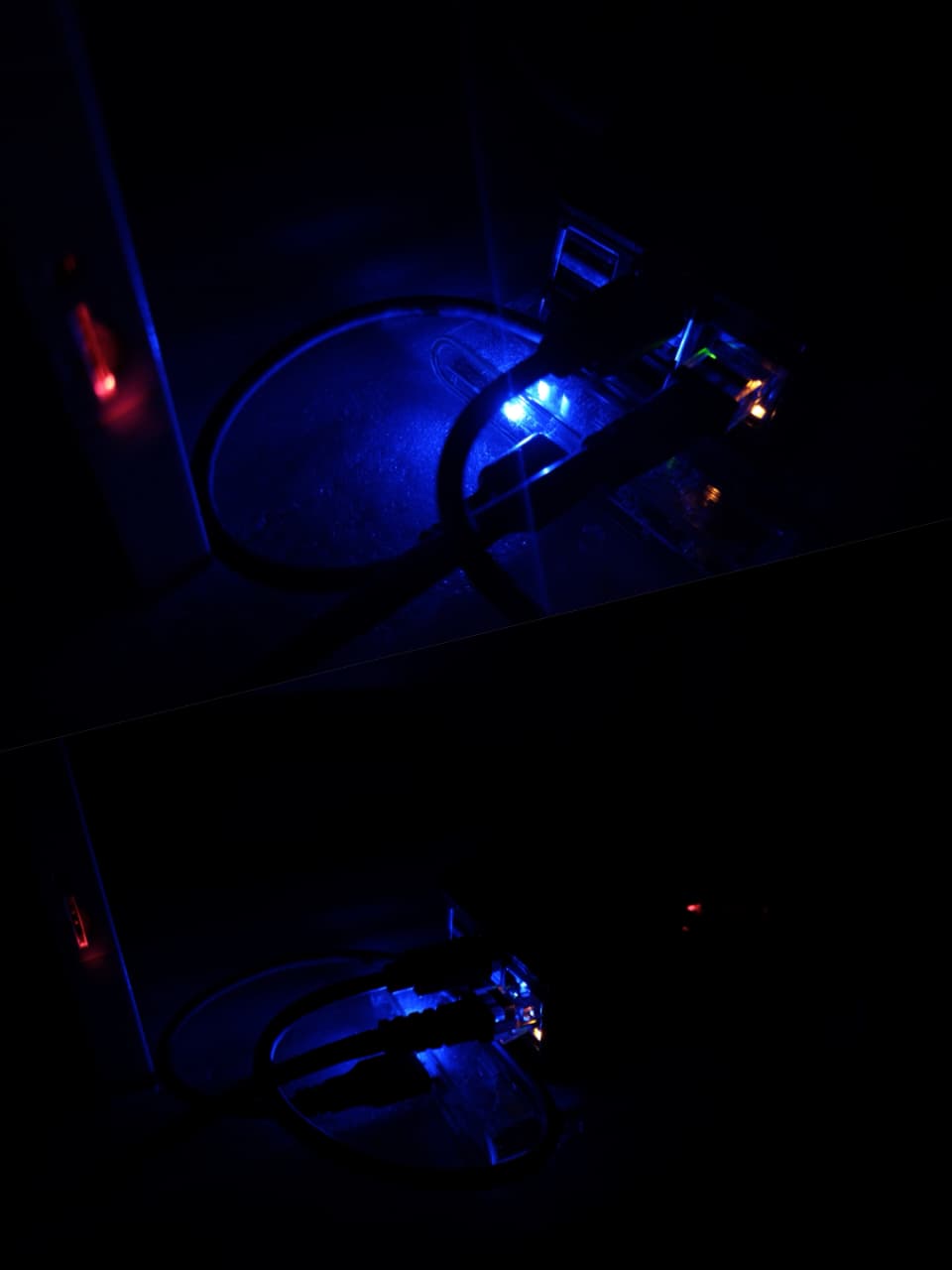

- Raspberry Pi 4 (4GB RAM model recommended for optimal performance)
- External storage (USB 3.0 HDD/SSD for data storage)
- MicroSD card for OS and boot files
- Active cooling solution for sustained performance
- Raspberry Pi OS Lite (headless configuration for efficiency)

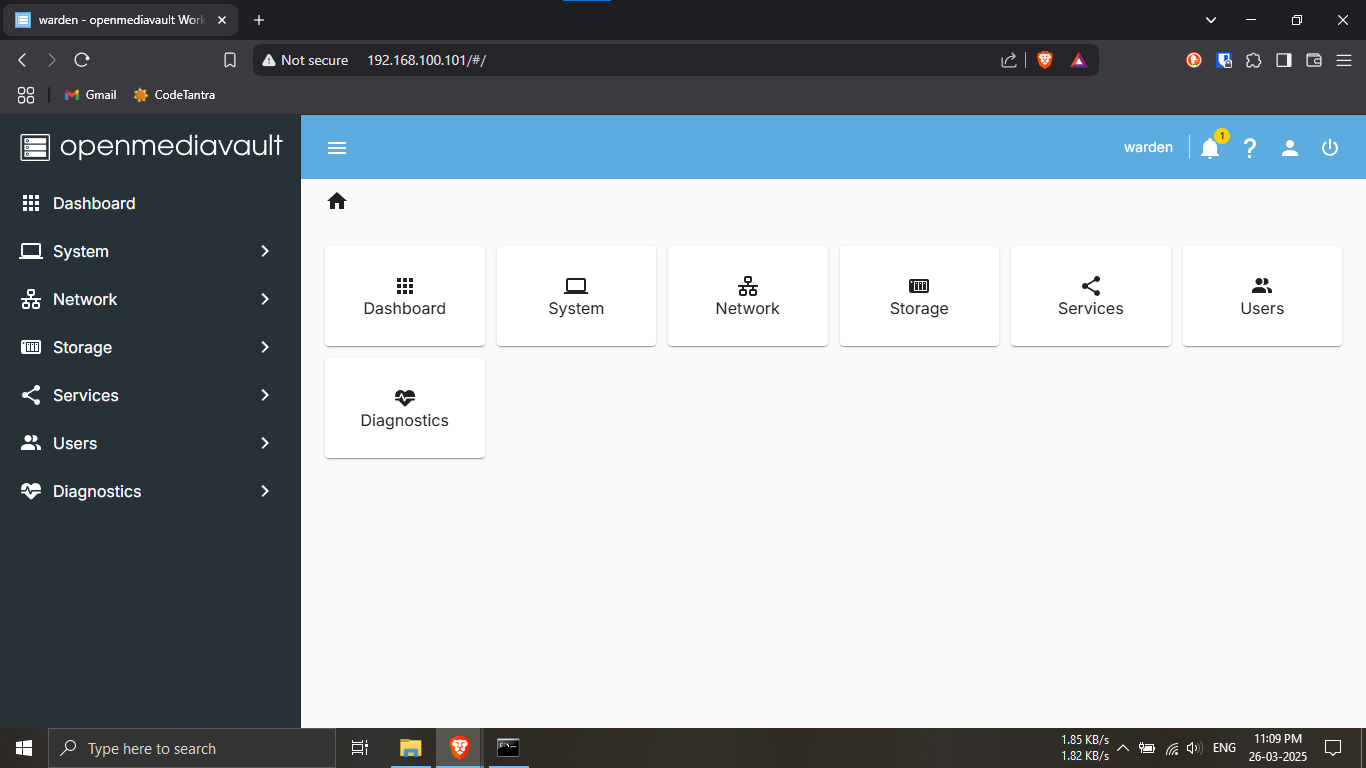

- OpenMediaVault for NAS management and web-based administration
- Docker Engine for containerized service deployment
- Twingate Zero-Trust Network Access (no port forwarding required)
- End-to-end encryption for all remote connections
- Identity-based access control with MFA support
- Network segmentation to isolate services
Application Services
- Automated media library organization and metadata fetching
- Transcoding support for multiple device formats
- Remote streaming capabilities to phones, tablets, and smart TVs
- User management for family sharing
- Automated backup scheduling
- Incremental backup support for efficiency
- Version control for critical files
- Cross-device synchronization
Technical Challenges & Solutions
Traditional remote access requires port forwarding, which exposes your home network to potential attacks. Any misconfiguration can create security vulnerabilities.

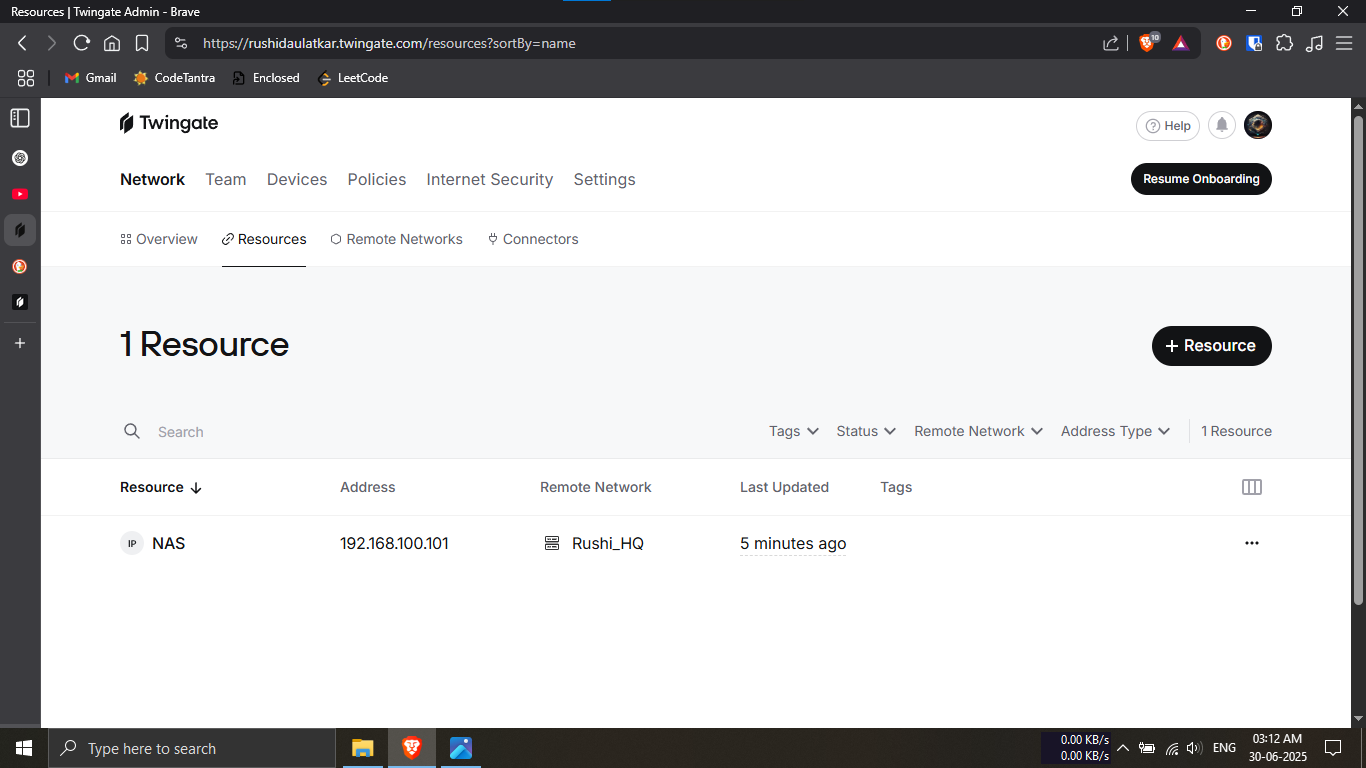

Solution: Implemented Twingate Zero-Trust Network Access (ZTNA), which creates encrypted tunnels without requiring any ports to be opened on the home router. All traffic is identity-verified and encrypted end-to-end.
Raspberry Pi 4 has limited RAM (4GB) and CPU resources compared to dedicated servers. Running multiple services simultaneously could cause performance degradation.
Solution: Used Docker containerization to isolate services and manage resource allocation efficiently. Each service runs in its own container with defined resource limits. Implemented active cooling to maintain stable CPU performance under load.
Hardware failures can lead to catastrophic data loss. Single-drive storage on a Pi lacks the redundancy of enterprise NAS solutions.
Solution: Configured automated backup services with OpenMediaVault, including scheduled snapshots and incremental backups. Implemented external backup drives for critical data redundancy. Used OpenMediaVault's SMART monitoring to predict drive failures.
Cost Analysis
Detailed total cost of ownership (TCO) comparison over 5 years:
- Monthly cost: ₹130/month
- 5-year total: ₹7,800
- Limited storage (100GB)
- No ownership, subscription-based
- Initial hardware: ~₹8,000 (Raspberry Pi 4, storage, accessories)
- Electricity (5 years): ~₹1,800 (15W continuous usage)
- 5-year total: ~₹9,800 (one-time investment)
- Storage: 1TB+ (expandable)
- Full ownership and control
Result: Comparing against Google One 2TB plan (₹650/month = ₹39,000 over 5 years), the savings become even more dramatic at 75% cost reduction with expandable storage and complete data sovereignty.
Real-World Impact & Use Cases
- Personal Cloud Storage: Store and access documents, photos, and backups from anywhere
- Media Streaming: Stream personal movie and music collection to any device
- Privacy: Complete control over personal data with no third-party access
- Learning Platform: Hands-on experience with cloud architecture, Docker, networking, and cybersecurity
- Cost Savings: One-time investment replaces recurring monthly subscriptions
- Scalability: Easily add more storage or services as needs grow
Research Publication
This project was accepted for presentation at the International Conference on Innovations in Data Analytics (ICIDA 2025) and will be published in Springer's Lecture Notes in Networks and Systems (LNNS) series.
- Acceptance Rate: 15.8% (159 papers selected from 1,003 submissions)
- Conference Date: December 7, 2025
- Publication Status: In Press (expected within 6 months)
- Paper Title: "Pi-Vate Cloud: A Self-Sovereign, Cost-Effective Personal Data-Ecosystem on Raspberry Pi"
- Co-authors: R. Raut, R. Daulatkar, A. Dhote, A. Pathode, H. Yadav
Technologies & Tools Used
- Hardware: Raspberry Pi 4 (4GB), External HDD/SSD, Active cooling
- Operating System: Raspberry Pi OS Lite
- NAS Platform: OpenMediaVault 6
- Containerization: Docker, Docker Compose

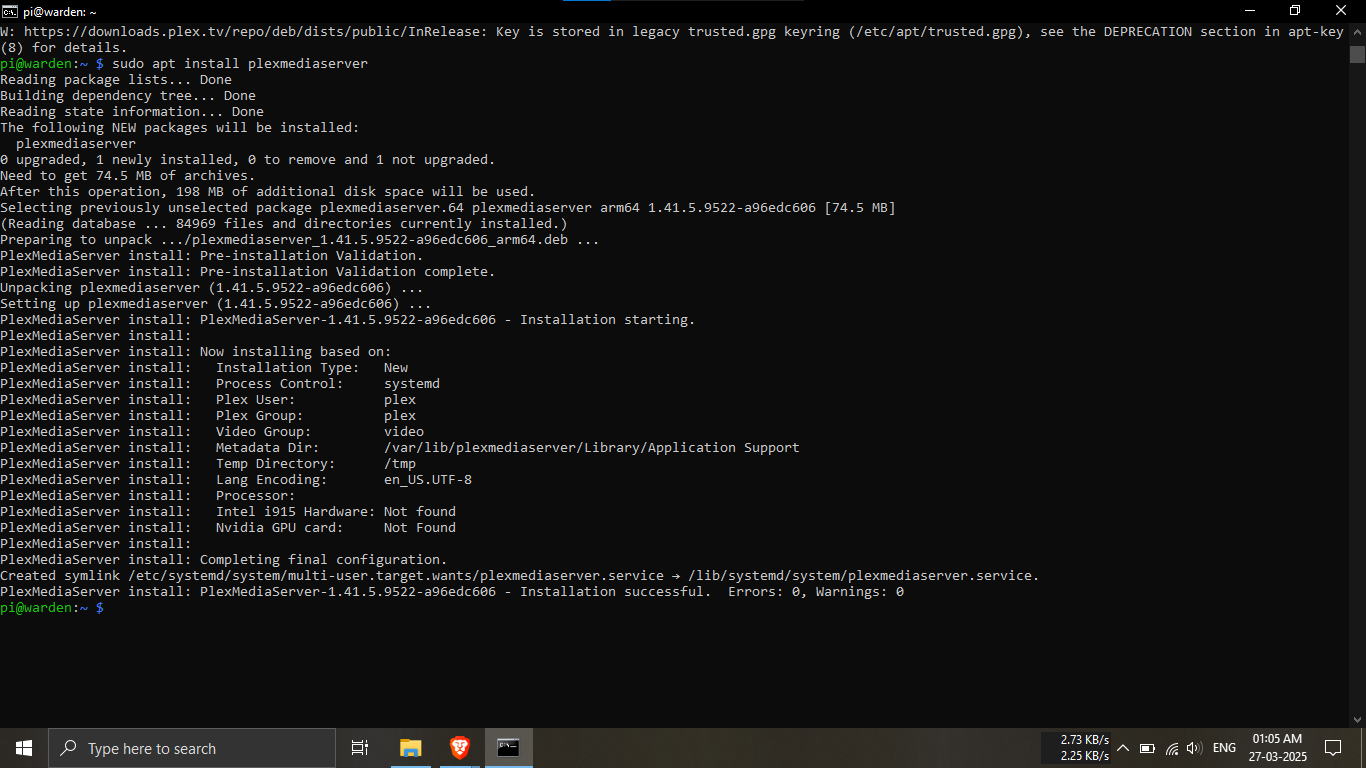

- Media Server: Plex Media Server
- Network Security: Twingate Zero-Trust Network Access
- File Systems: ext4, BTRFS (with snapshots)
- Networking: Static IP configuration, DHCP reservation
